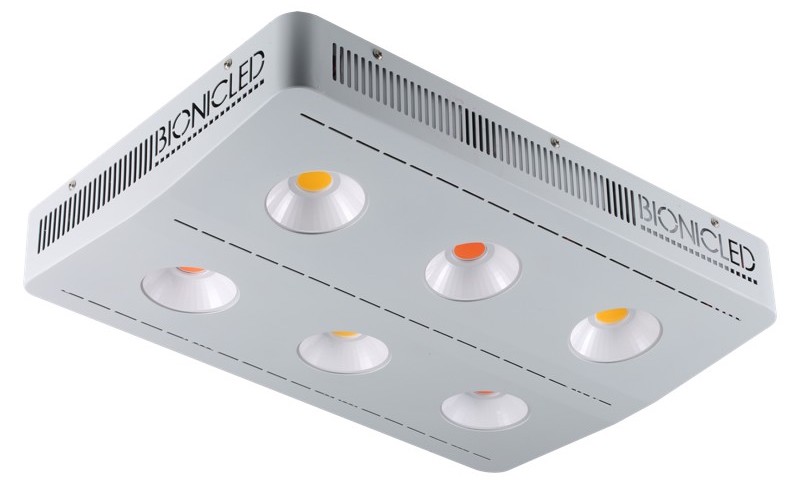

BionicPan P1200WX

The BionicPan WX series is the most advanced to date.

The Full Spectrum COB (purple) has been upgraded to a Luminus horticultural model, the panel design has been redesigned to optimize light coverage, and the ventilation is even more efficient and quiet.

XTRA WIDE ANGLE

The unique housing of BionicPan WX incorporates an angle on the front that slightly angles the COBs outward to illuminate a wider area.

Many LED panels have a high light intensity directly under the lamp, and a rapid decrease in light intensity when moving away from the panel.

The unique design of the WX series reduces this effect, and better distributes the light output over the area to be illuminated.

DUAL SPECTRUM

The use of two complementary spectrums has always been part of the BionicLED DNA.

The white light reinforces the light penetration and offers a better visibility of the real colors of the plant

And the violet spectrum, dedicated to horticulture, emits wavelengths that precisely meet the needs of photosynthesis.

This combination of spectrums allows a more useful power consumption because it is better targeted.

MAX COB POWER

The heat dissipation of the BionicPan is active because we have chosen to draw the maximum power from each COB.

We power our Cree and Luminus COBs at 85W (or 110W for the Cree CXB 3590) when other brands have chosen a passive dissipation, but to limit themselves to 60W.

Why limit a COB intended to provide more lumens and Umol?

On this generation of panels we use larger fans (9.2 cm) custom developed, to offer the best ratio of airflow / silence

The cut-out of the rear ventilation grids has also been modified to maximize air intake and reduce turbulence.

On the front, the addition of 3 new vent lines helps prevent heat build-up around the COBs.

TECHNOLOGY

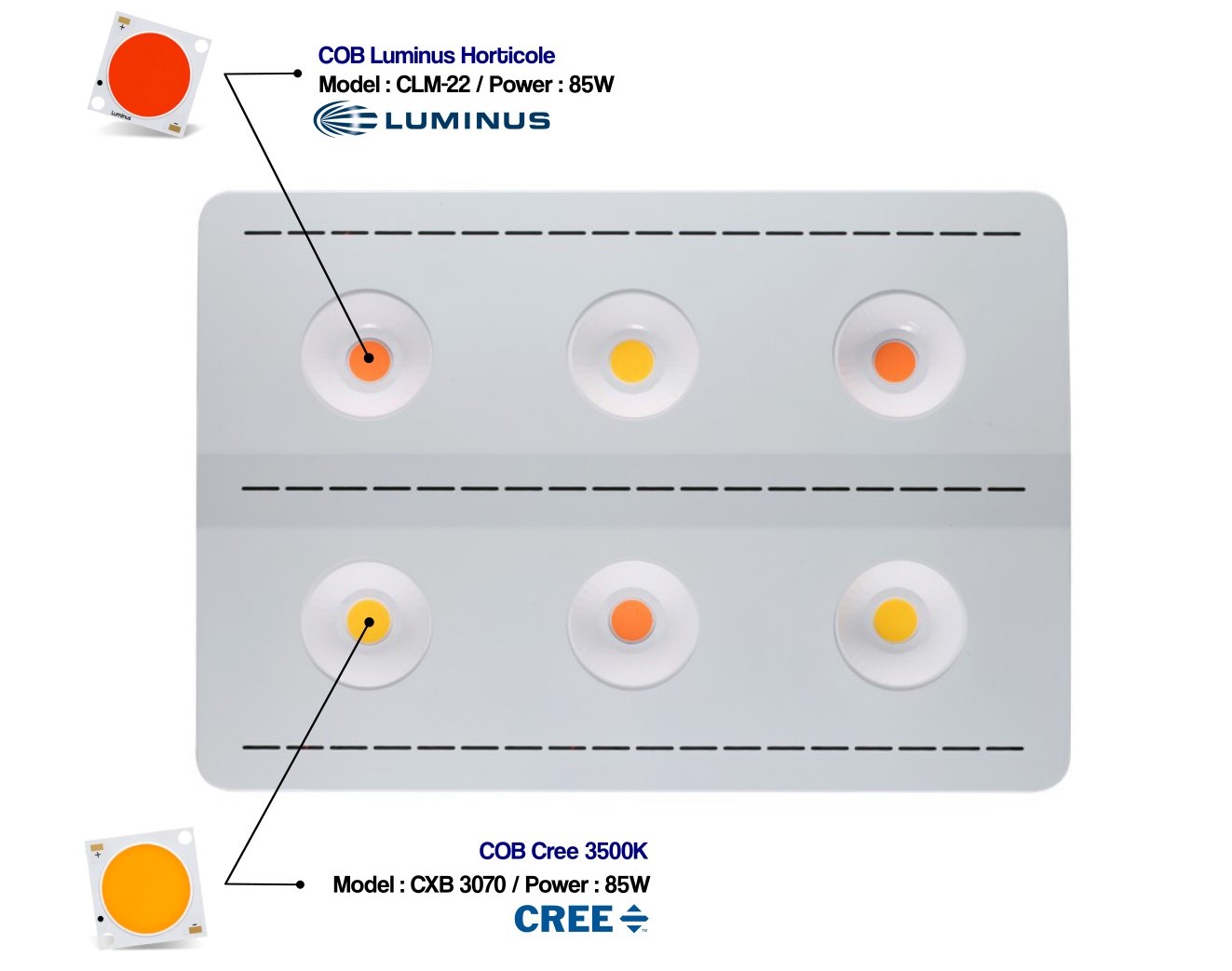

The BionicPan WX are the first lamps to feature the all-new CLM-22 COB from Luminus' HortiLum line.

We have combined it with the CREE CXB 3070 3000K which is known for its reliability and high light output.

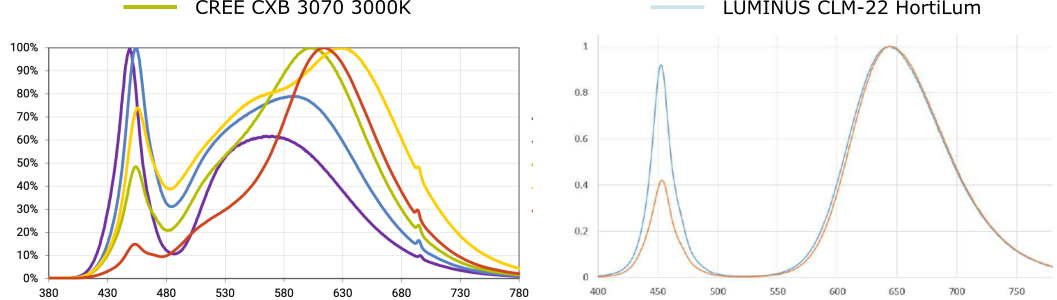

The spectral curves of these two COBs complement each other perfectly to create a complete and versatile light.

A UNIQUE LIGHTING

The BionicPan WX is unique in its design and spectrum, but also in the fact that you will not need any other lighting during your cultivation.

The BionicPan can be used from germination to flowering.

The spectrum of the BionicLED lamps is suitable for all phases of plant development.

SPECIFICATIONS

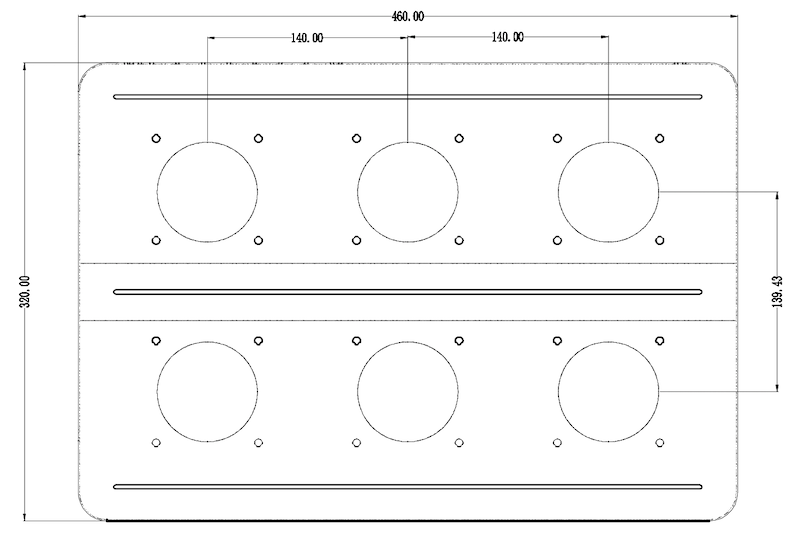

Dimensions: 60/72 x 460 x 320 mm (H x W x D)

Weight: 6 Kg

Power consumption: 510W

Coverage: 120 x 140 cm (Flowering) / 140 x 160 cm (Growth)

Installation height (in relation to the canopy): 35/40 cm (Flowering) / 45/50 cm (Growth)
